A1 (compatible ALCA/ALCADRAIN)

Product detailed description

IWARNING: THE FRONT WALL IN FRONT OF THE MODULE MUST HAVE A MINIMUM THICKNESS OF 34 MM IN ORDER TO INSTALL THE BUTTON.

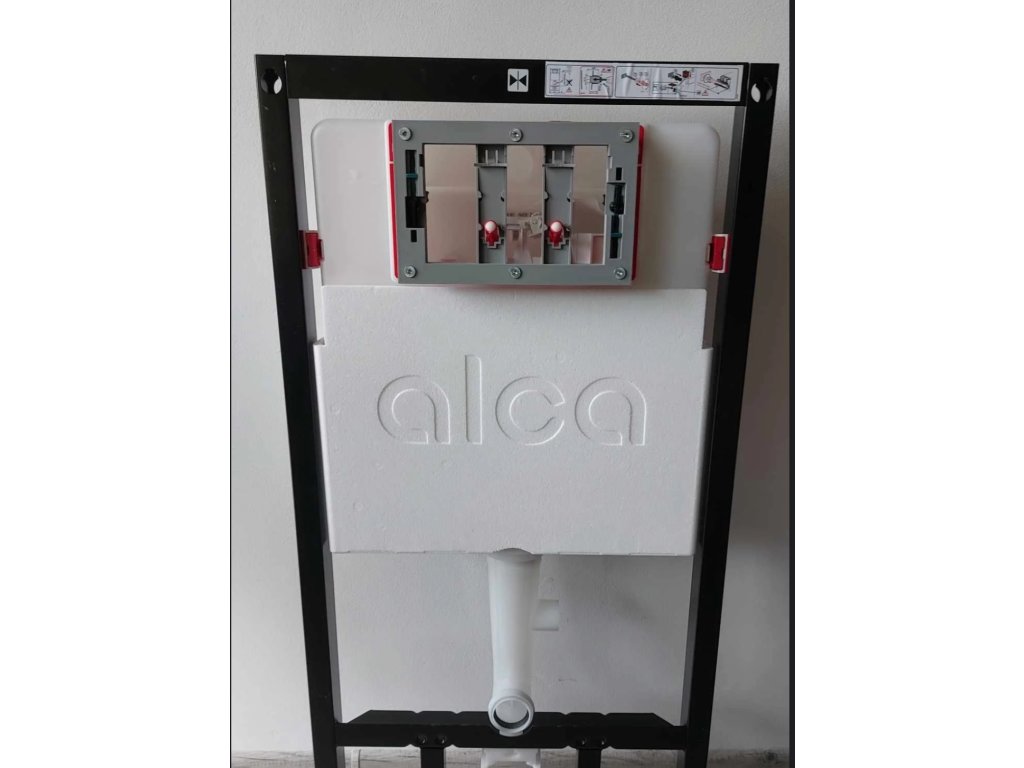

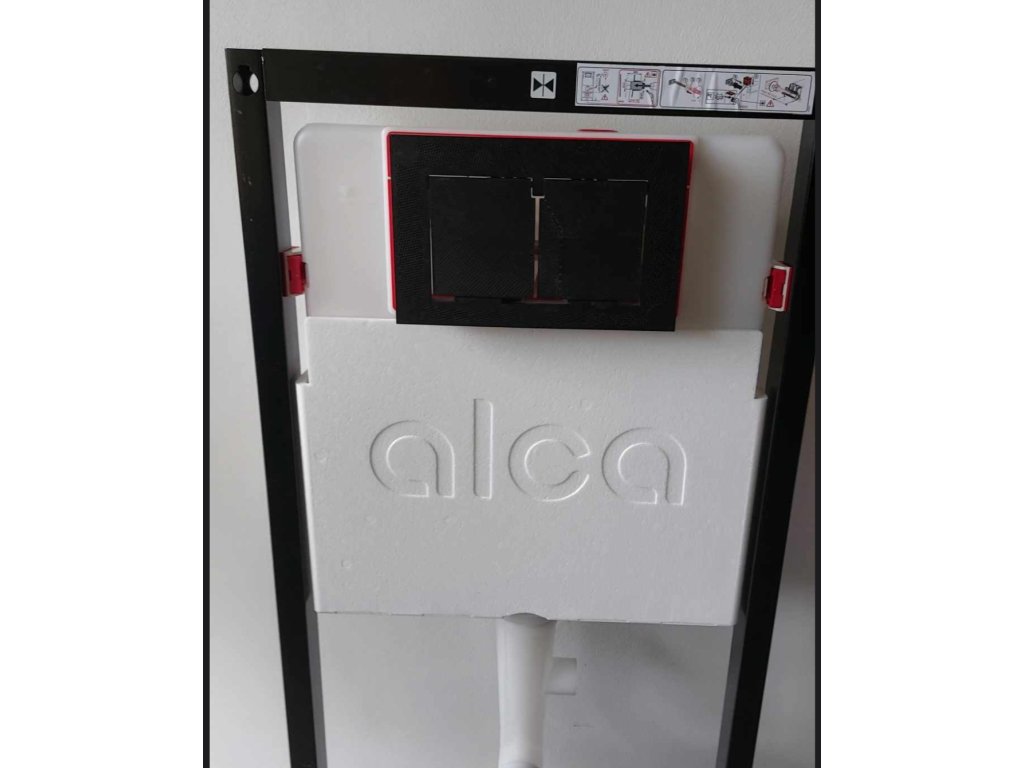

This product is an independent, non-original flush button that is compatible with Alca systems. ((SEE the image with the tank))

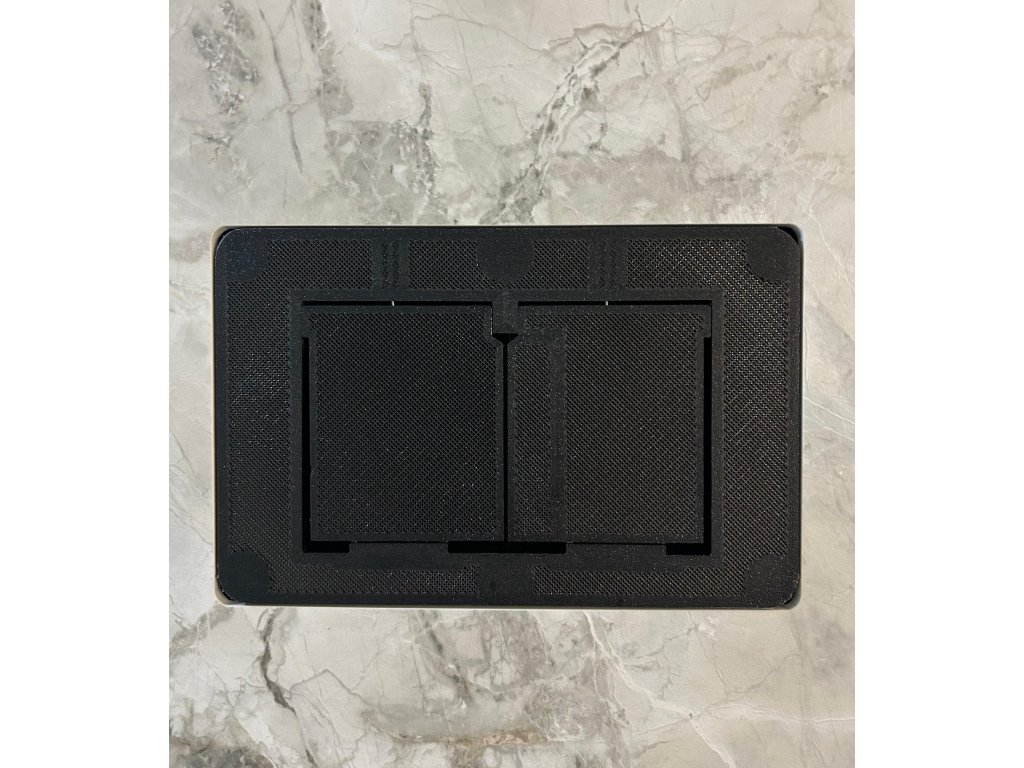

It serves as a functional, compatible alternative with an elegant and professional appearance that blends seamlessly with the surrounding tiling. The button is made from a material with excellent mechanical and thermal properties. Installation must be carried out by an experienced tiler with the proper tools for cutting tiles. A 2-year warranty is provided.

Basic parameters:

Height: 155 mm
Width: 238 mm
Depth: 23.8–31.8 mm
Forward adjustment: up to 8 mm

Package contents:

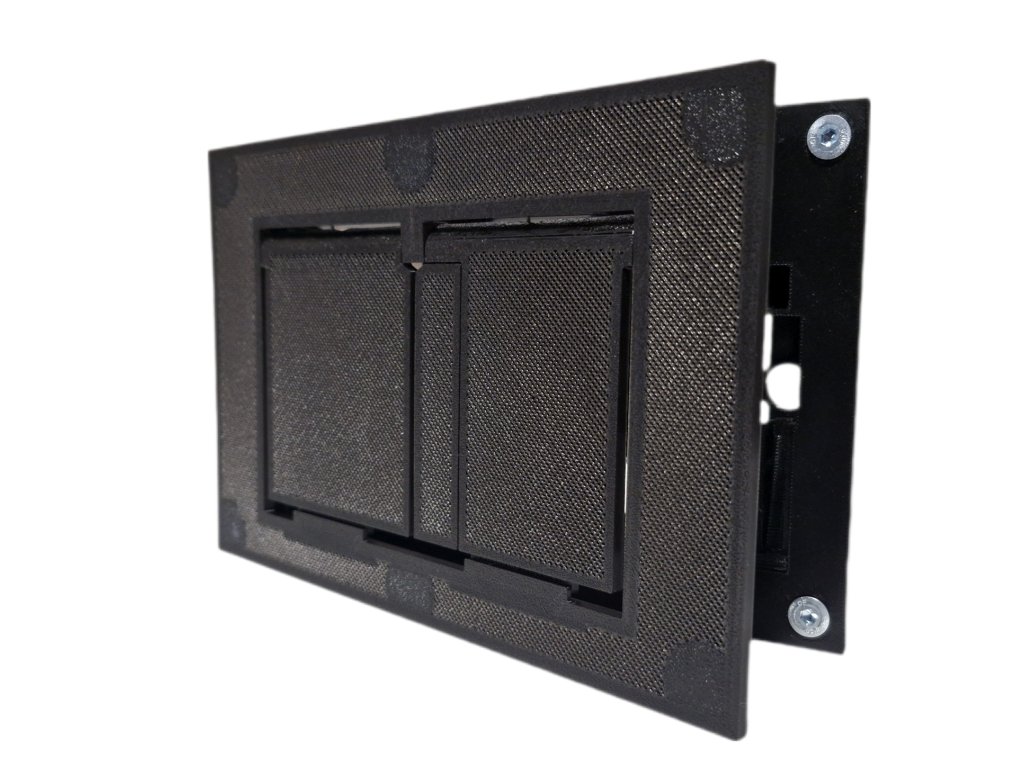

Front section – 6 neodymium magnets
Rear section – 6 screws, 2 locking pins, 2 control rods, cutting template

The front part of the button is always the same. The difference is in the rear section, which makes it compatible with the original system.

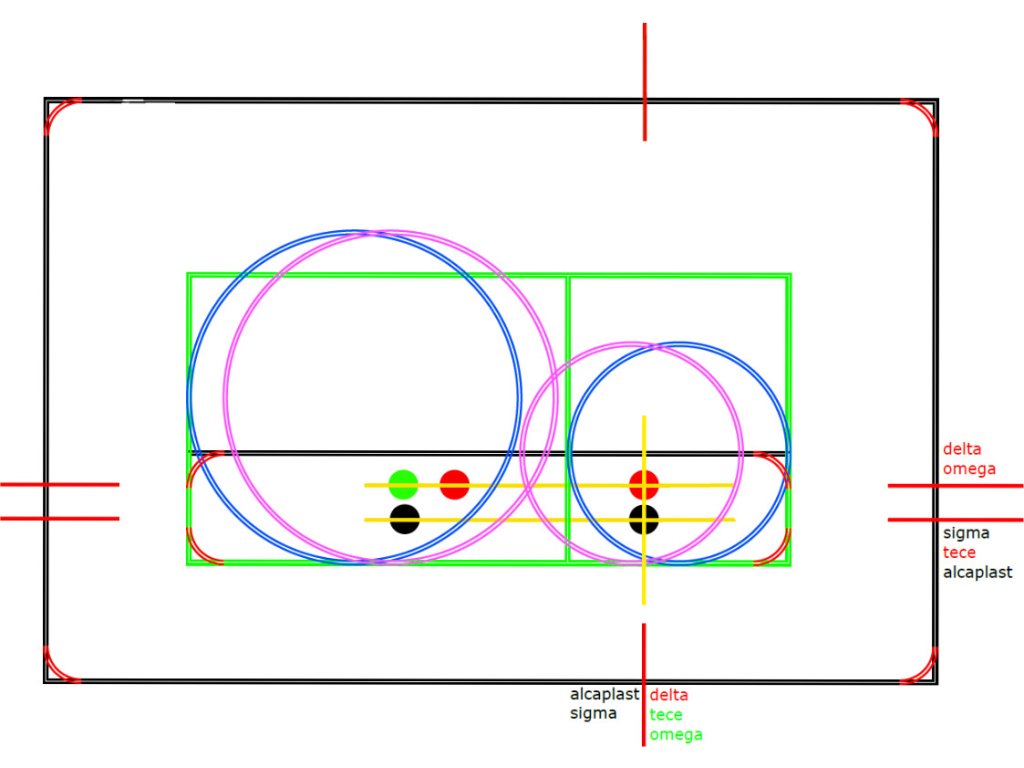

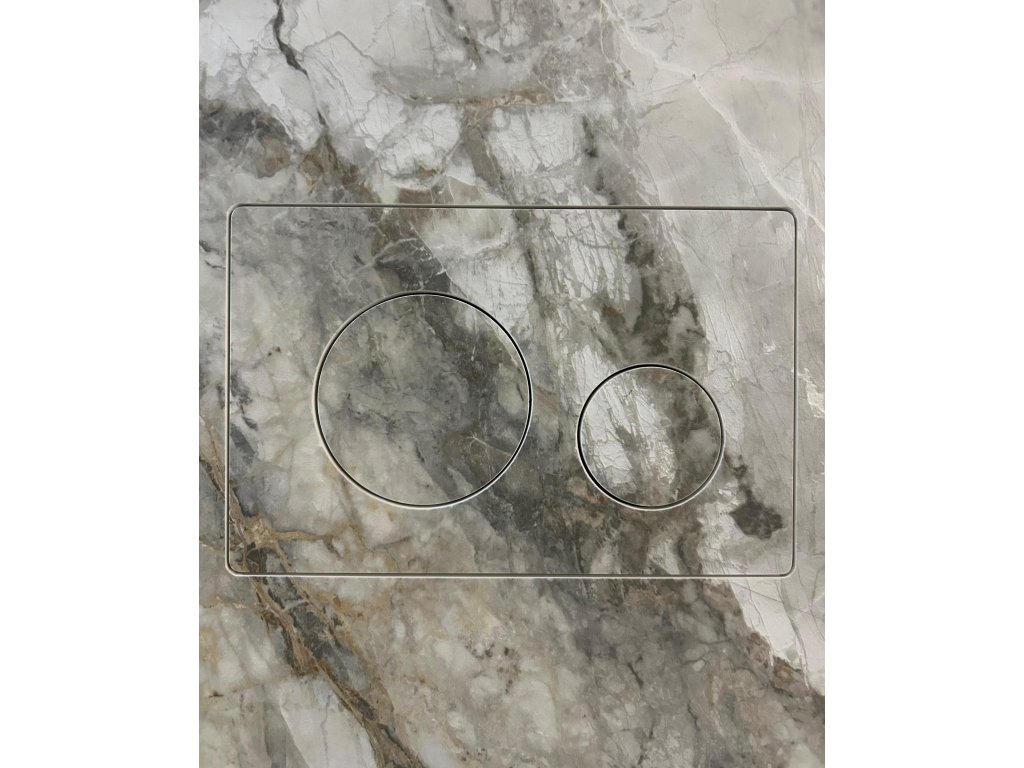

You can determine the final shape of the button yourself using the provided adhesive template, according to which you will choose the cutout shape.
The cutout should be made by an experienced tiler with the necessary skills to achieve the best possible result.
The best results are achieved using water-jet cutting.

INSTRUCTION HERE: HOW TO INSTALL
